Glideline Platform

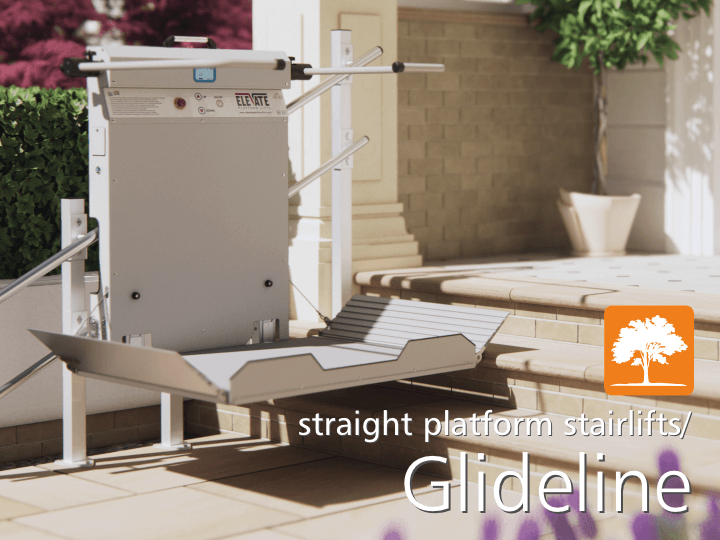

Introducing our Oakland Glideline platform stairlift, one of our most popular and reliable platform stairlifts designed to take both the user and their wheelchair up the stairs.

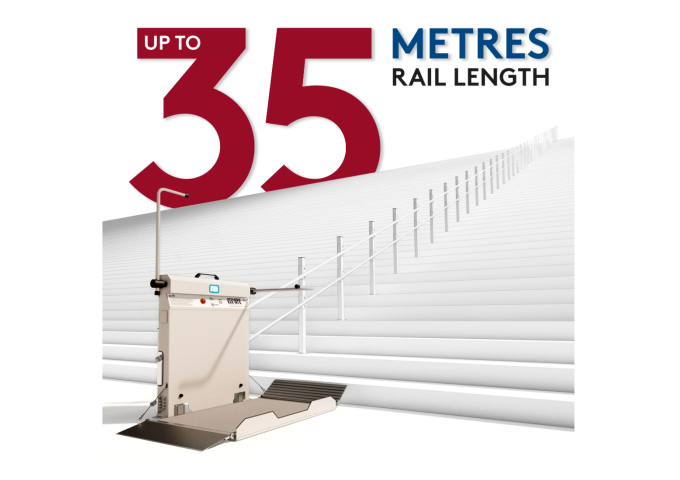

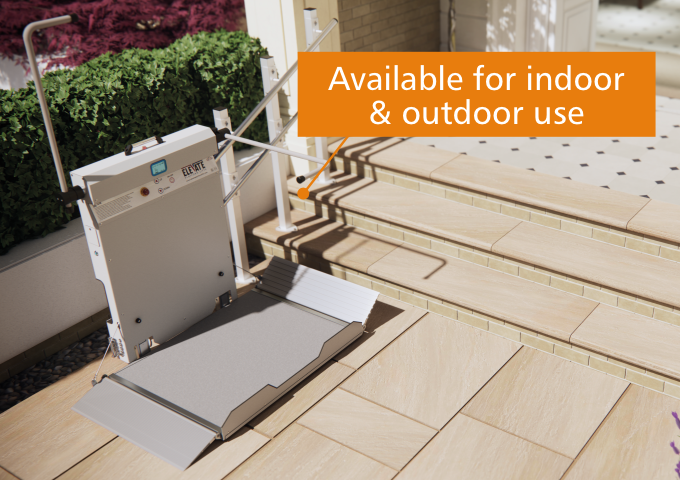

Our Glideline can be wall mounted or used with standard or heavy duty stanchions to travel up straight staircases with a constant gradient and availalbe for installation both indoors or outdoors with a rail length up to an impressive 35m with an angle of between 16 and 45 degrees.

As with most platform stairlifts they are more suited to larger staircases and are typically used in a commecial environment where more space is available both on the staircase and at the bottom where they park. We can make the platform to various sizes to suit your needs.

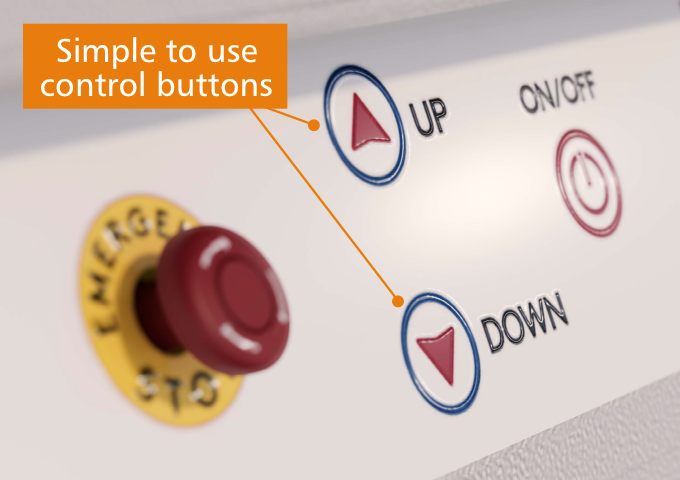

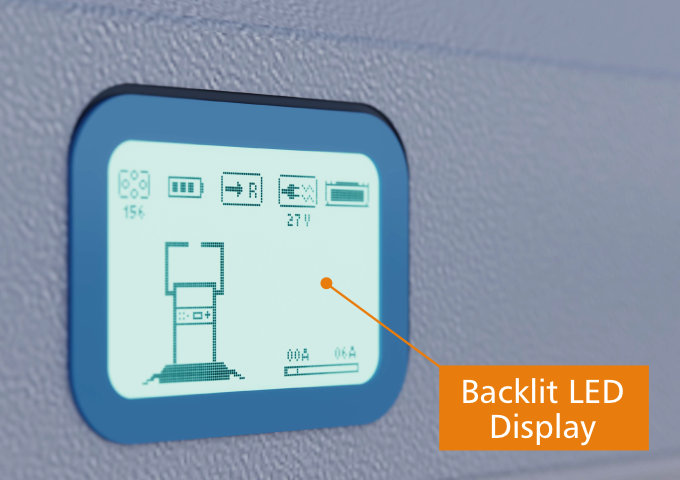

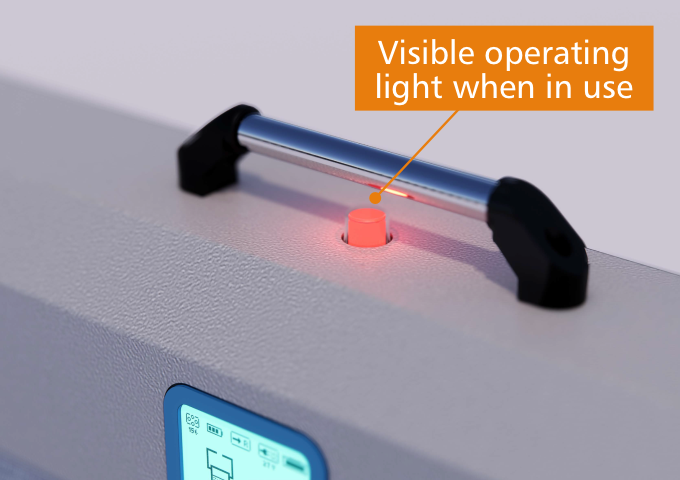

Our Glideline features easy to use controls and has an LED digital display to show the operating status of the lift it also comes with two key lockable remote controls for secure operation.

Our comprehensive technical survey will identify if your stairs are suitable for our Glideline Platform stairlift range so please get in touch on 0800 195 9790

New from £7995

Oakland Glideline

Key Features

Drive system rail: Rack & pinion gear

Rail length (min/max): 500mm / 35m

Rail angle (min/max): 16° / 45°

Safety system brake / Anti-jamming switch

Operating voltage: 220V 50Hz (4x battery)

Motor Power: 50w

Speed: 0,07 - 0,15 m/s

Load capacity: 300kg

Wall or floor mounting

Indoor or outdoor use

Folding seat available

Platform size options available

Special colours available

Centre flap (front access) upgrade

Outdoor weather cover available

3 year warranty

Oakland Glideline

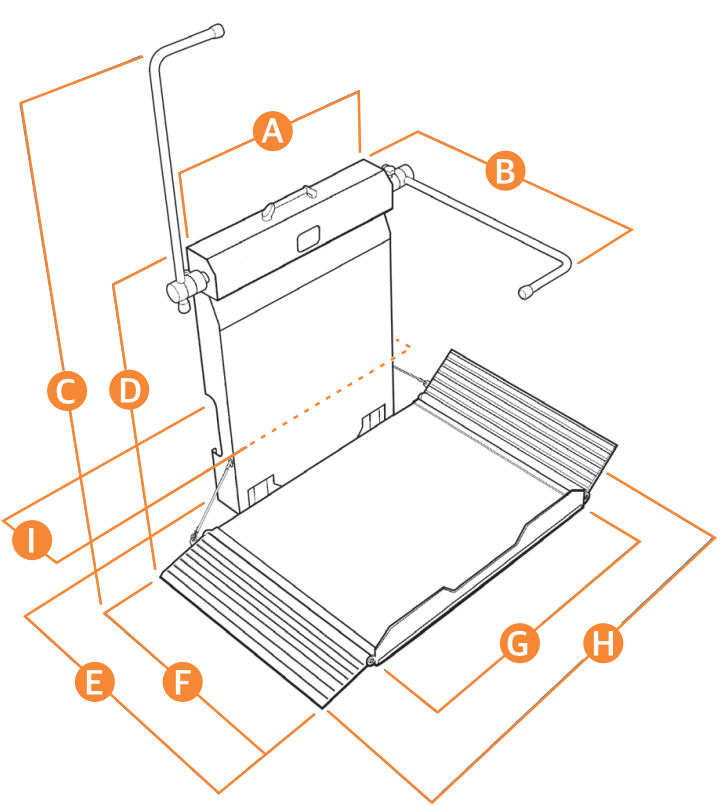

See diagram below for reference.

For your convenience dimensions are shown in both millimetres (mm)



A) Horizontal Width (body) 750mm

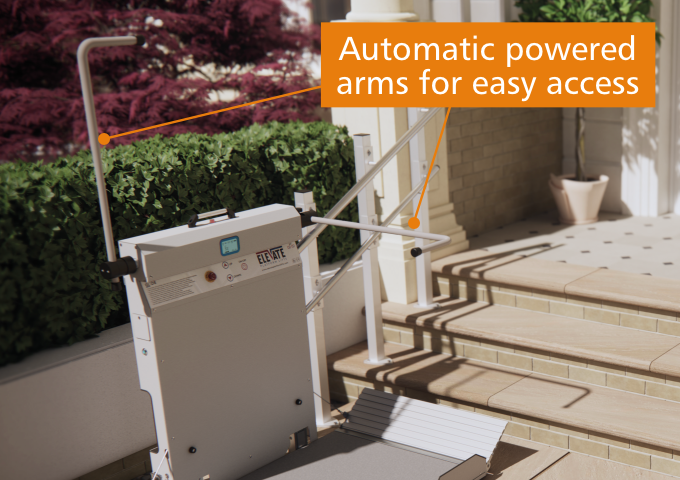

B) Arm Length 900mm

C) Overall Height (arm up) 1830mm

D) Overall Height (from floor) 1100mm

E) Overall Depth (platform down) 1060mm

F) Platform Width 800mm

G) Platform Length 1000mm

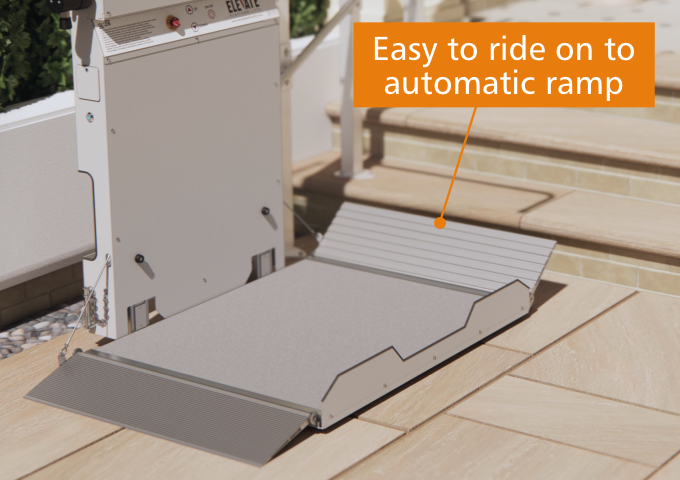

H) Platform Length (ramps down) 1445mm

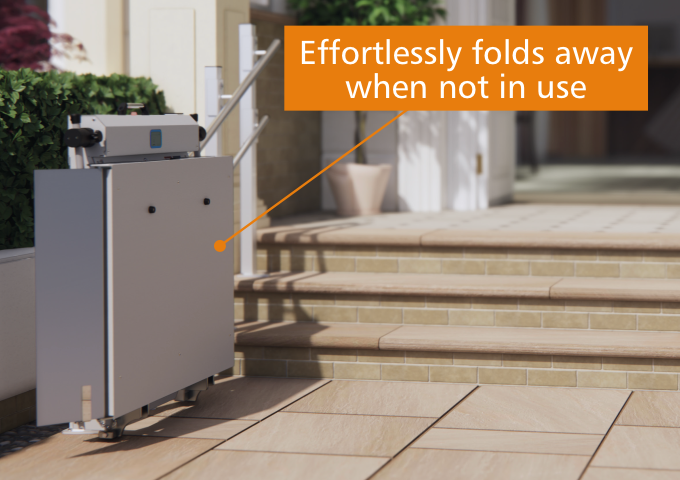

I) Overall Depth (folded) 300mm

PDF Downloads

All prices include your home survey, installation and 1 or 2 years warranty
